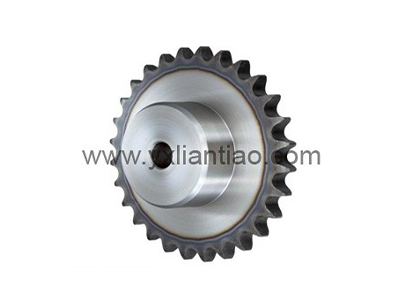

短节距精密滚子链链轮

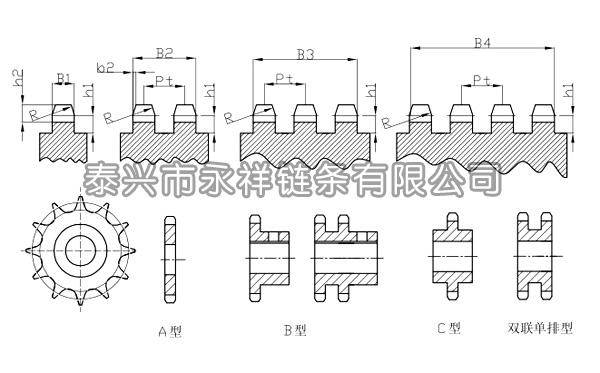

| 链号 Sprocket NO. | 节距 P mm | 滚子 直径 d1 mm | h1 mm | 排距 Pt mm | 倒角 高 h2 mm | 倒角 宽 b2 mm | 单排 齿厚 B1 mm | 2排 齿厚 B2 mm | 3排 齿厚 B3 mm | 4排 齿厚 B4 mm |
25 | 6.35 | 3.3 | 4.0 | 6.4 | 3.2 | 0.8 | 2.8 | 2.7 | 2.7 | 2.4 |
35 | 9.525 | 5.8 | 5.0 | 10.1 | 4.8 | 1.2 | 4.3 | 4.1 | 4.1 | 3.8 |
40 | 12.70 | 7.95 | 7.0 | 14.4 | 6.4 | 1.6 | 7.2 | 7.0 | 7.0 | 6.5 |
50 | 15.875 | 10.16 | 10.3 | 18.1 | 7.9 | 2.0 | 8.7 | 8.4 | 8.4 | 7.9 |
60 | 19.05 | 11.91 | 11.8 | 22.8 | 9.5 | 2.4 | 11.7 | 11.3 | 11.3 | 10.6 |
80 | 25.40 | 15.88 | 15.5 | 29.3 | 12.7 | 3.2 | 14.5 | 14.1 | 14.1 | 13.1 |
100 | 31.75 | 19.05 | 19.2 | 35.8 | 15.9 | 4.0 | 17.5 | 17.0 | 17.0 | 16.0 |
120 | 38.10 | 22.23 | 23.0 | 45.4 | 19.1 | 4.8 | 23.5 | 22.7 | 22.7 | 21.5 |
140 | 44.45 | 25.40 | 27.0 | 48.9 | 22.2 | 5.6 | 23.5 | 22.7 | 22.7 | 21.5 |
160 | 50.80 | 28.58 | 31.6 | 58.5 | 25.4 | 6.4 | 29.3 | 28.4 | 28.4 | 27.0 |
180 | 57.15 | 35.71 | 36.8 | 65.8 | 28.5 | 7.2 | 33.1 | 32.0 | 32.0 | 30.4 |
200 | 63.50 | 39.68 | 39.6 | 71.6 | 31.8 | 7.9 | 35.3 | 34.1 | 34.1 | 32.5 |
240 | 76.20 | 47.63 | 48.5 | 87.8 | 38.1 | 9.5 | 44.1 | 42.7 | 42.7 | 40.7 |
