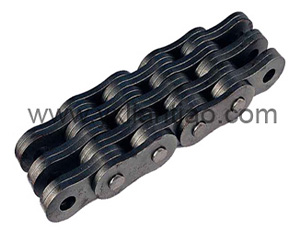

LL型板式链条
链号 Chain NO. | 节距 P mm | 链板 组合 | 链板 高度 h mm | 链板 厚度 T mm | 销轴 直径 d2 mm | 销轴 长度 L mm | 极限 拉伸 载荷 KN | 每米 长重 kg/m |
LL0822 | 12.7 | 2×2 | 10.9 | 1.3 | 4.45 | 7.6 | 17.8 | 0.4 |
LL0844 | 4×4 | 13 | 31.3 | 0.8 | ||||
LL0866 | 6×6 | 18.4 | 44.5 | 1.2 | ||||
LL1022 | 15.875 | 2×2 | 13.75 | 1.7 | 5.08 | 9.3 | 22.2 | 0.5 |
LL1044 | 4×4 | 16.1 | 44.5 | 1 | ||||
LL1066 | 6×6 | 22.9 | 66.7 | 1.5 | ||||
LL1222 | 19.05 | 2×2 | 16.1 | 1.9 | 5.72 | 10.7 | 28.9 | 0.7 |
LL1244 | 4×4 | 18.5 | 57.8 | 1.3 | ||||
LL1266 | 6×6 | 26.3 | 86.7 | 2 | ||||
LL1622 | 25.4 | 2×2 | 21 | 3.2 | 8.28 | 17.2 | 58 | 1.5 |
LL1644 | 4×4 | 30.2 | 116 | 3 | ||||
LL1666 | 6×6 | 43.2 | 174 | 4.4 | ||||
LL2022 | 31.75 | 2×2 | 26.4 | 3.7 | 10.2 | 20.1 | 95 | 2.3 |
LL2044 | 4×4 | 35.1 | 190 | 4.4 | ||||
LL2066 | 6×6 | 50.1 | 285 | 6.6 | ||||
LL2422 | 38.1 | 2×2 | 33.4 | 5.2 | 14.6 | 28.4 | 170 | 4.4 |
LL2444 | 4×4 | 49.4 | 340 | 8.5 | ||||
LL2466 | 6×6 | 70.4 | 510 | 12.5 | ||||
LL2822 | 44.45 | 2×2 | 37 | 6.4 | 15.9 | 34 | 200 | 5.4 |
LL2844 | 4×4 | 60 | 400 | 10.5 | ||||
LL2866 | 6×6 | 86 | 600 | 15.5 | ||||
LL3222 | 50.8 | 2×2 | 42 | 6.4 | 17.8 | 35 | 260 | 6.2 |
LL3244 | 4×4 | 61 | 520 | 12.1 | ||||
LL3266 | 6×6 | 87 | 780 | 18 | ||||
LL4022 | 63.5 | 2×2 | 53 | 8.2 | 22.8 | 44.7 | 360 | 10.3 |
LL4044 | 4×4 | 77.9 | 780 | 20 | ||||
LL4066 | 6×6 | 111.1 | 1080 | 29.5 | ||||
LL4822 | 76.2 | 2×2 | 63.8 | 10.3 | 29.2 | 56.1 | 560 | 18.5 |
LL4844 | 4×4 | 97.4 | 1120 | 35.7 | ||||
LL4866 | 6×6 | 138.9 | 1168 | 53 |
