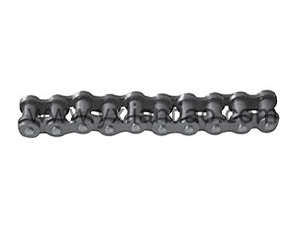

加重系列滚子链条

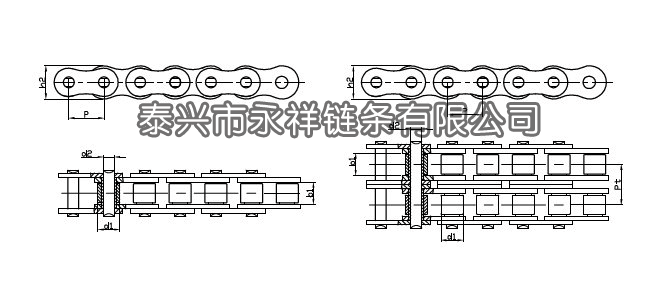

链号 DIN/ISO Chain NO. | 链号 ANSI Chain NO. | 节距 P mm | 滚子 直径 d1 mm | 内节 内宽 b1 mm | 销轴 直径 d2 mm | 内链 板高 度h2 mm | 销轴 长度 Lc mm | 排距 Pt mm | 极限 拉伸 载荷 KN | 每米 长重 Kg |
08AH-1 | 40 | 12.70 | 7.95 | 7.85 | 3.96 | 12.00 | 19.9 | 14.1 | 0.62 | |
10AH-1 | 50 | 15.875 | 10.16 | 9.40 | 5.08 | 15.09 | 23.4 | 22.2 | 1.02 | |
12AH-1 | 60 | 19.05 | 11.91 | 12.57 | 5.94 | 18.00 | 31.0 | 26.11 | 31.8 | 1.50 |
16AH-1 | 80 | 25.40 | 15.88 | 15.75 | 7.92 | 24.00 | 37.7 | 32.59 | 56.7 | 2.60 |
20AH-1 | 100 | 31.75 | 19.05 | 18.90 | 9.53 | 30.00 | 46.9 | 39.09 | 88.5 | 3.91 |
24AH-1 | 120 | 38.10 | 22.23 | 25.22 | 11.10 | 35.70 | 57.50 | 48.87 | 127 | 5.62 |
28AH-1 | 140 | 44.45 | 25.40 | 25.22 | 12.70 | 41.00 | 62.20 | 52.20 | 172.4 | 7.50 |
32AH-1 | 160 | 50.80 | 28.58 | 31.55 | 14.27 | 47.80 | 73.00 | 61.90 | 226.8 | 10.1 |
40AH-1 | 200 | 63.50 | 39.68 | 37.85 | 19.85 | 60.00 | 93.50 | 78.31 | 353.8 | 16.15 |
