焊接输送链条

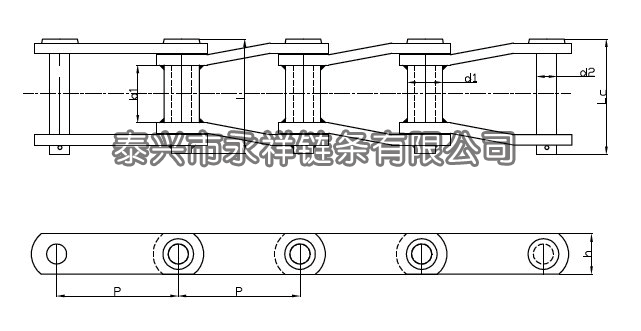

链号 Chain NO. | 节距 P mm | 套筒 直径 d1 mm | 窄端 内宽 b1 mm | 销轴 直径 d2 mm | 销轴 长度 L mm | 销轴 长度 Lc mm | 链板 高度 h mm | 极限 抗拉 载荷 KN | |
W78 | 66.27 | 22.9 | 28.4 | 12.78 | 73.0 | 79.3 | 28.4 | 93.4/106.8 | 载荷包括(销轴热处理/全部热处理) |
W82 | 78.1 | 31.5 | 31.8 | 14.35 | 80.0 | 86.0 | 31.8 | 100/131.2 | |
W106 | 152.4 | 37.1 | 41.2 | 19.13 | 103.0 | 111.0 | 38.1 | 169/224.6 | |
W110 | 152.4 | 32.0 | 46.7 | 19.13 | 107.7 | 115.5 | 38.1 | 169/224.6 | |
W111 | 120.9 | 37.1 | 57.2 | 19.13 | 116.8 | 124.5 | 38.1 | 169/224.6 | |
W124 | 101.6 | 37.1 | 41.2 | 19.13 | 103.0 | 110.0 | 38.1 | 169/224.6 | |
W124H | 103.2 | 41.7 | 41.2 | 22.3 | 131.6 | 133.0 | 50.8 | 275/355.9 | |
W132 | 153.67 | 44.7 | 76.2 | 25.48 | 151.0 | 162.2 | 50.8 | 275/378 |
